the sun is coming out 2

as i said before all these steps in constructing the roof are very important for example the perlins not only keep the trusses up but also keep them straight we do this by pushing against the truss before nailing the perlin to it with the use of marking out and tacing nails allows for the instalation of the perlins far easyer. other aspects of the roofing are showen in these photos

shows how the gable end truss is smaller for the outrigger

hw to install the lowest perlin on the edge of truss

strap bracing crossing over truss and under perlin

nail tacked in for easy instalation of perlins

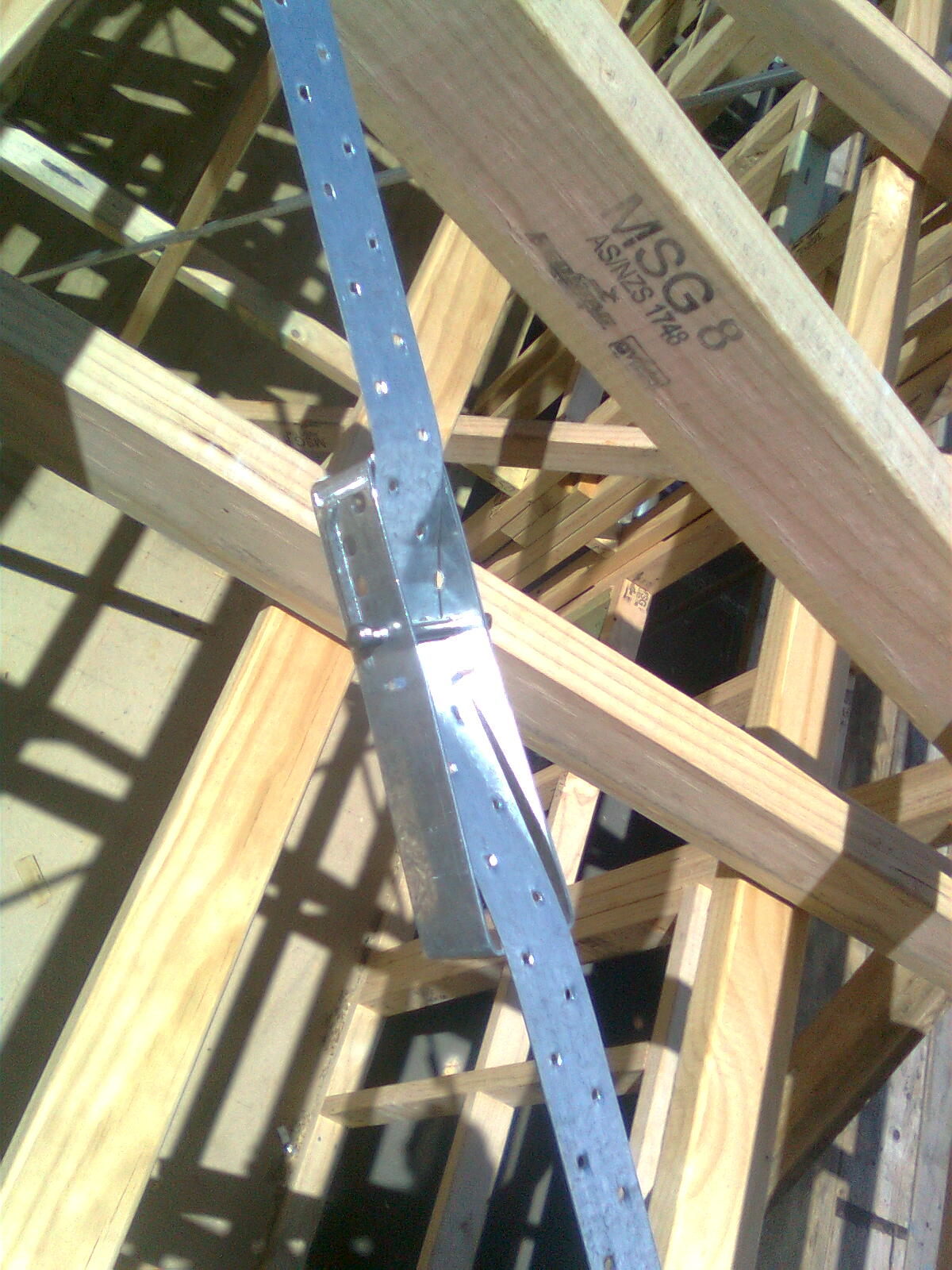

tencioner

trusses at the end of the week

nog installed to help hold strap bracing and later hold outrigger

installing nogs inbetween trusses

side view of house

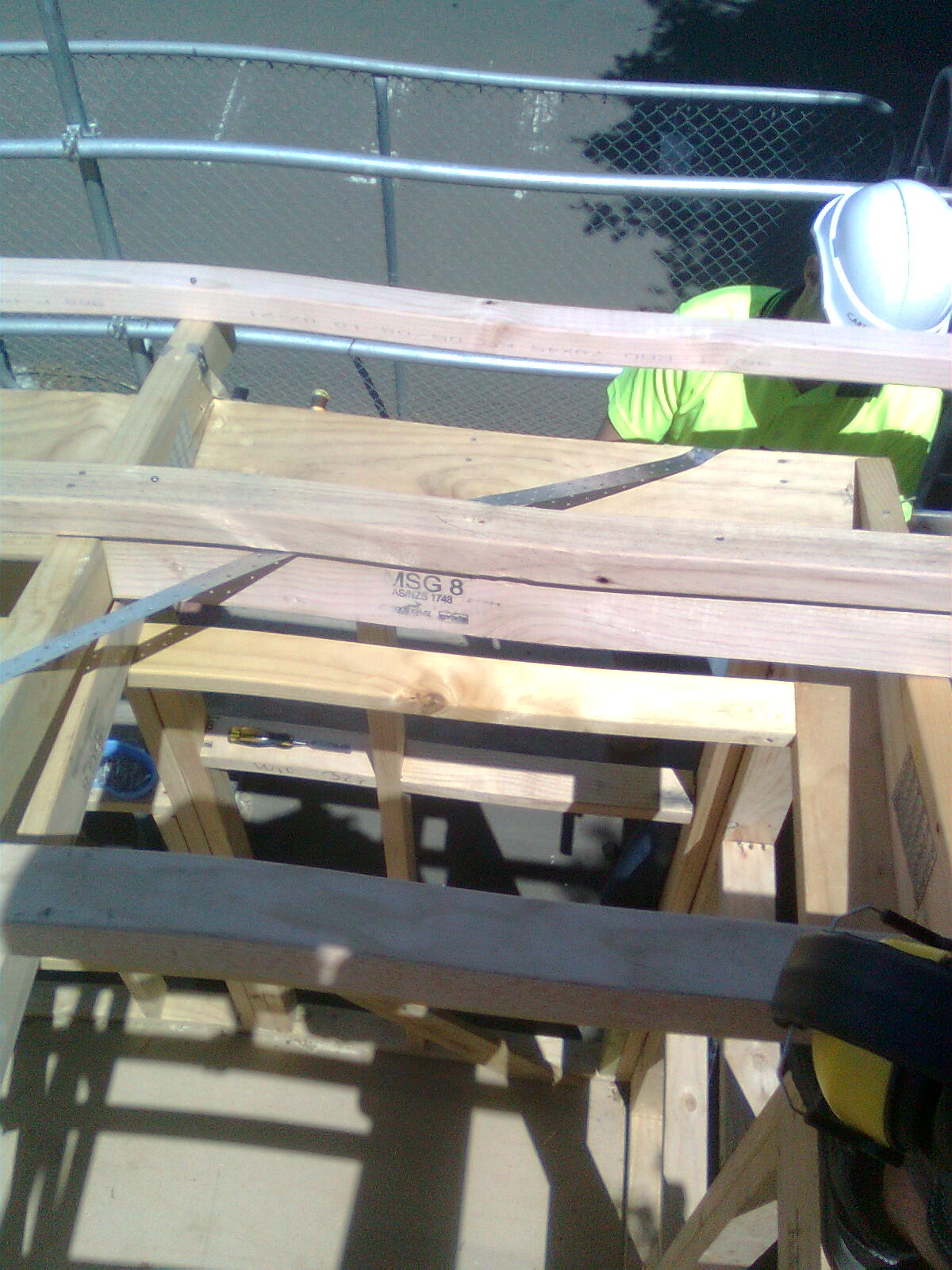

clamp used to keep truss down to double top plate for nailing

cyclone strap to hold down the ends of the trusses

the perlins on the edges of the houses are diffrent because they cannot cross over the edge of the truss so we prevent this by using a straight edge (rule, square etc) and place it across the end of the truss as showen in the picture above and then nail the perlin in.

this week we also installed strap bracing at the back end of the house this helps keep the roofs strength and together we install them by running them diaganaly across a saction of the roof above the truss and below the perlin and then chisel out a grove for the ends and with the use of the correct product nails nail them in then to increse the tencile strength we use the tensioner as showen above
